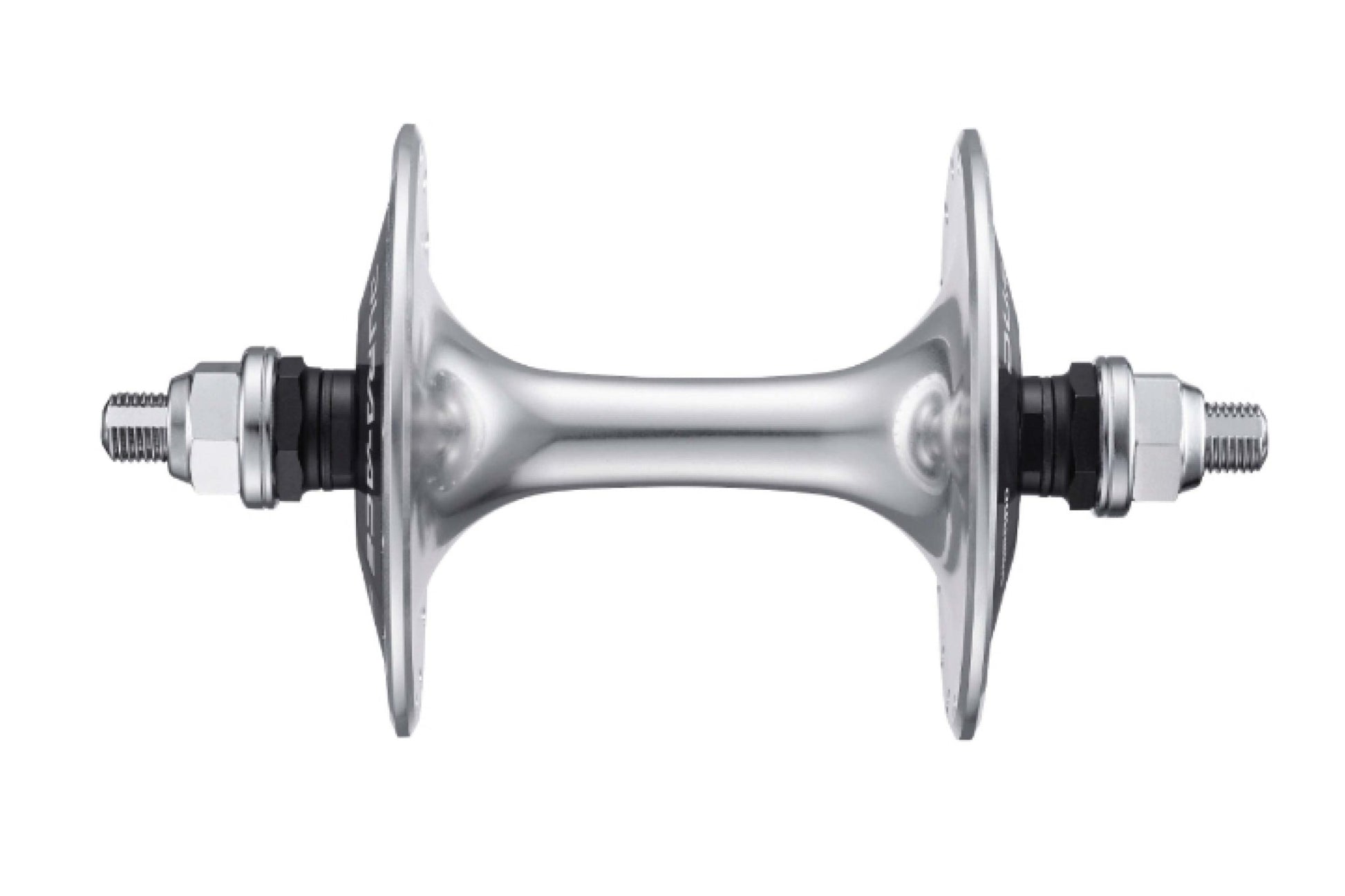

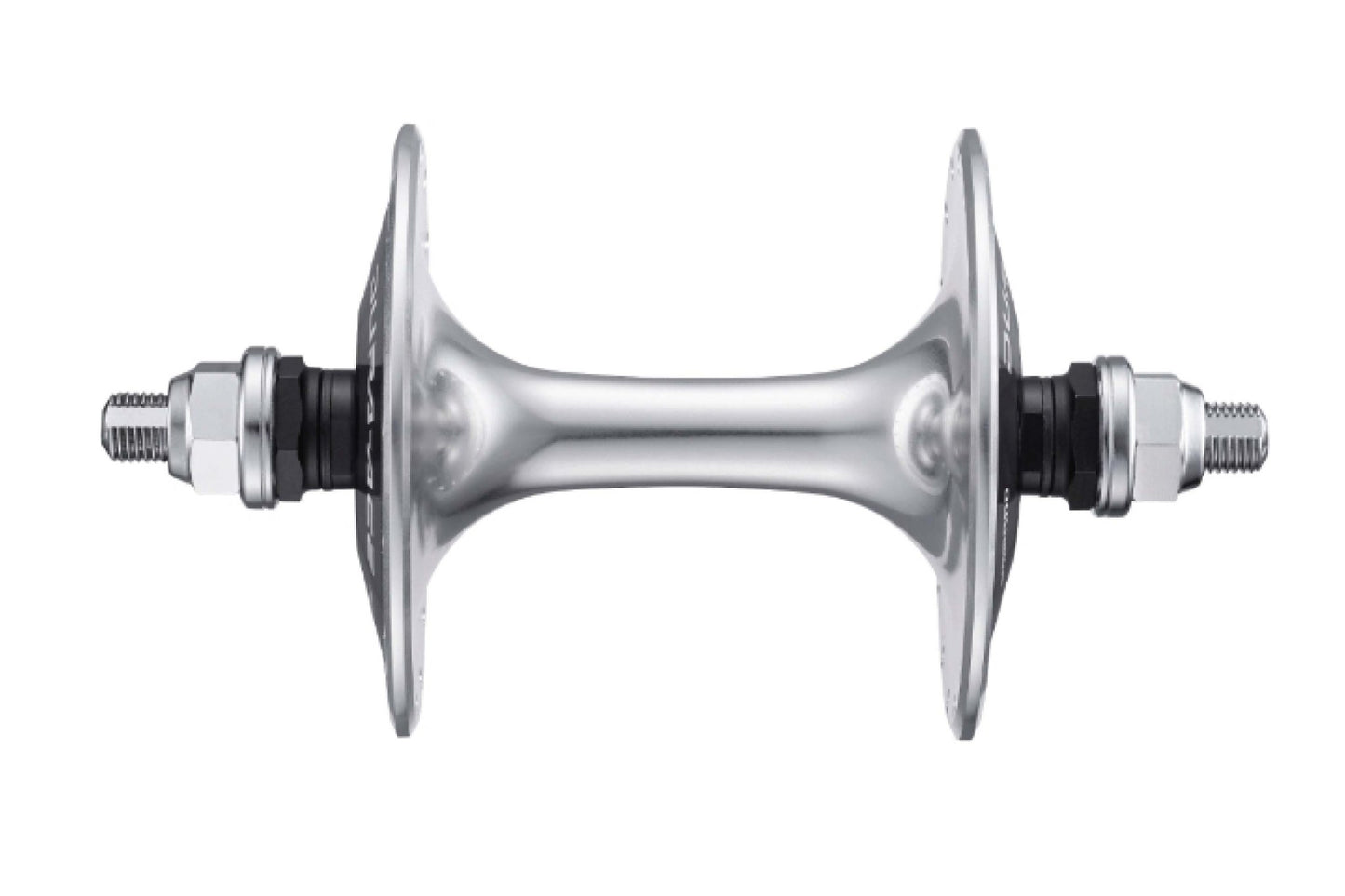

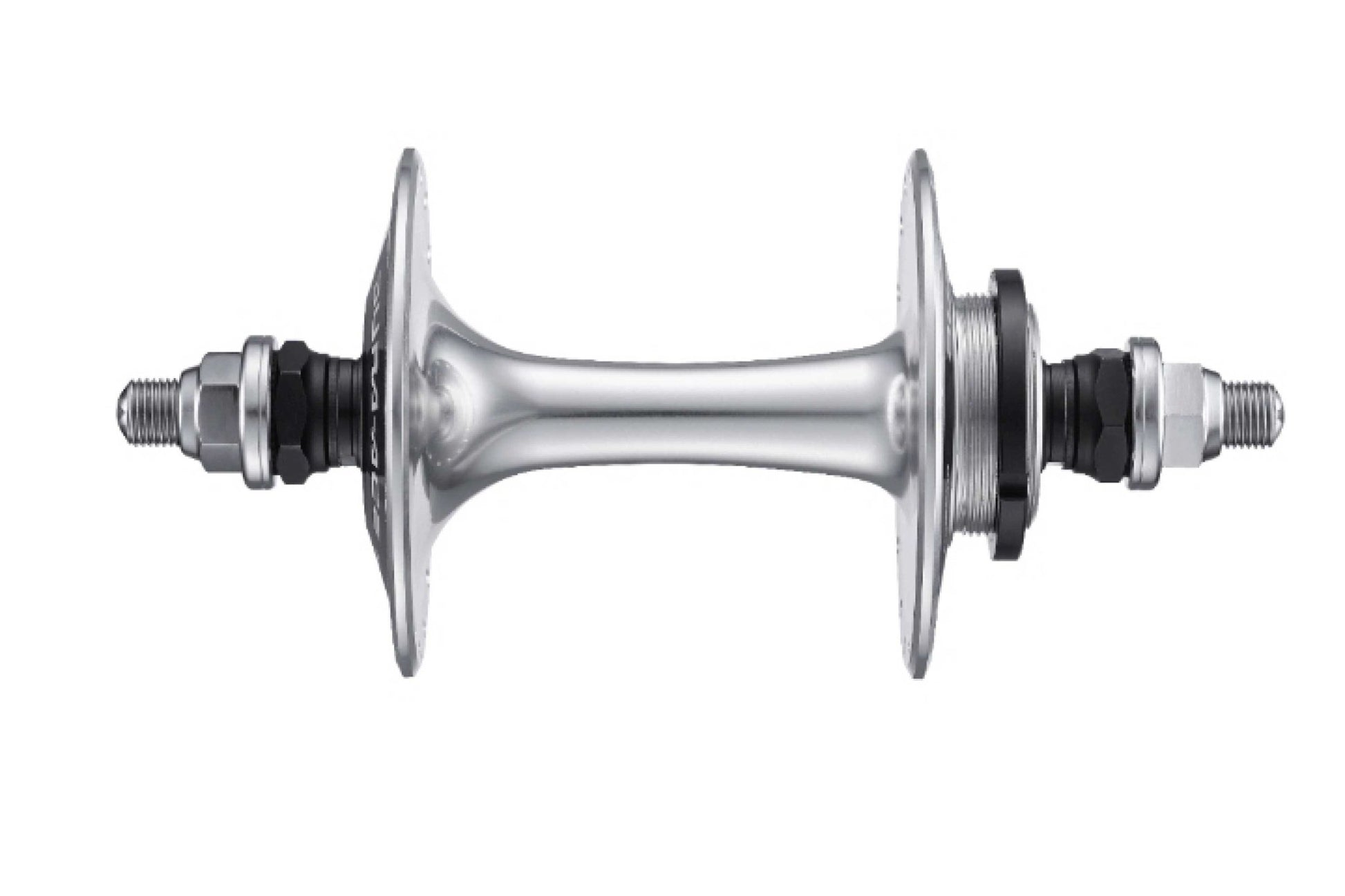

SHIMANO Dura Ace HB-7600 Track Wheel Hub

Shimano

通常価格 $210.00

The most commonly used track hubs by Japanese Keirin racers, simply because these hubs are dependable, trusted and proven to win races.

SHIMANO Dura Ace HB-7600 Track Wheel Hub Specifications

MODEL NO HB-7600
SERIES DURA-ACE TRACK 7710 Series
Color Silver
Average weight 313 (rear LF w/ lock rin), 241 (front LF)
P.C.D Left (mm) 67
P.C.D Right (mm) 67
Flange diameter_Left (mm) 75
Flange diameter_Right (mm) 75
Axle Fixing method Nut
Bearing_Cone CBN, Polish
Bearing_Cup CBN, Polish
Bearing_Stainless ball
Brake Type Rim brake
Flange diameter (mm) 75
Flange distance (mm) 72.3 (Front), 75.5 (Single Thread, Rear), 65.0 (Double Thread, Rear)
O.L.D. (mm) 100 (Front), 120 (Rear)
Offset (mm) 0(Front), 5.25(Rear)
P.C.D (mm) 67
QR lever_Color Silver
Seal Dust Cap
Spoke holes_28H
Spoke holes_32H
Spoke holes_36H
Flange diameter_Front (mm) 75
Flange diameter_Rear (mm) 75
P.C.D._Front (mm) 67
P.C.D _Rear (mm) 67
